The horizontal premade pouch packaging machine consists of pouch feeding, coding, pouch opening, filling, air exhausting, and sealing, with the entire process completed on a single horizontal packaging machine.

The premade pouch packaging machine is available in single-station, dual-station, and four-station configurations which can be equipped with a feeding and weighing system depending on the material type that is used for, while also being suitable for packaging liquids, sauces, granules, and powders.

Pouch Types

Zipper Stand-up Pouch

Zipper Stand-up Pouch

Zipper Stand-up Pouch with Hang Hole

Zipper Stand-up Pouch with Hang Hole

Side Spout Pouch

Side Spout Pouch

Zipper Bottom Gusset Stand-Up Pouch

Zipper Bottom Gusset Stand-Up Pouch

Zipper Perforated Stand-up Pouch

Zipper Perforated Stand-up Pouch

Auxiliary Equipment for Packaging Different Materials

Powder Packaging

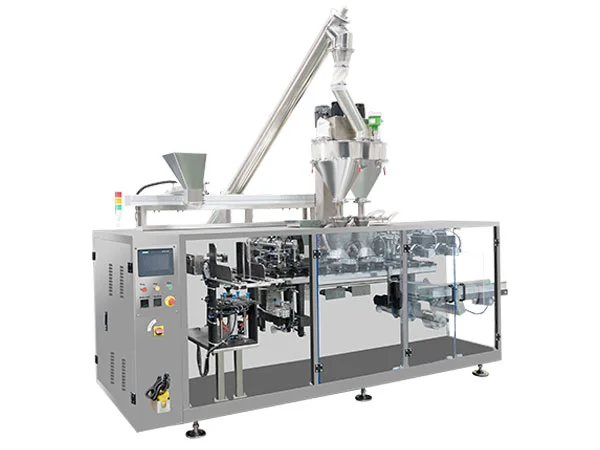

Supported Pouch Types
Supported Pouch Types

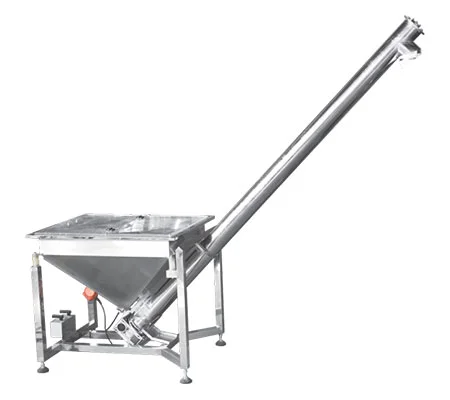

powder screw feeder
Powder Screw Feeder

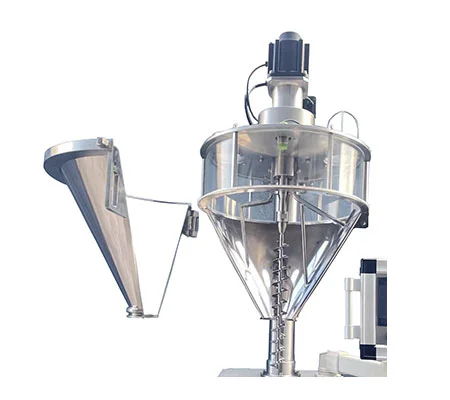

Auger Filler
Auger Filler

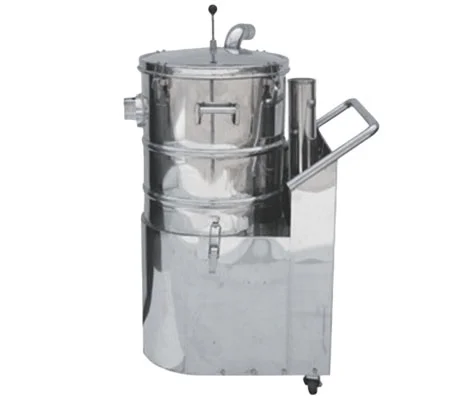

Food Grade Vacuum Dust Collector
Food Grade Vacuum Dust Collector
Request a Quote

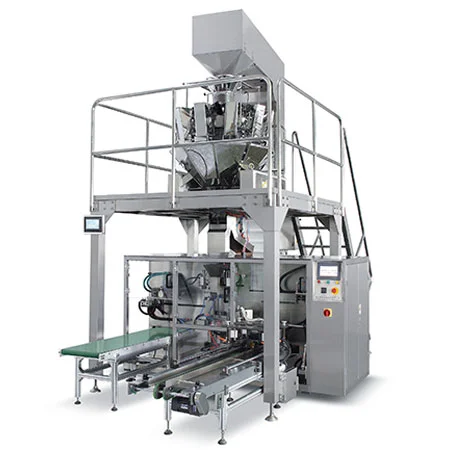

Granule Packaging

Granule Packaging
Granule Packaging

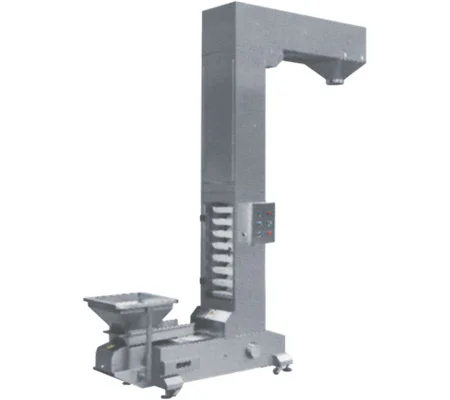

Z-Type Bucket Elevator
Z-Type Bucket Elevator

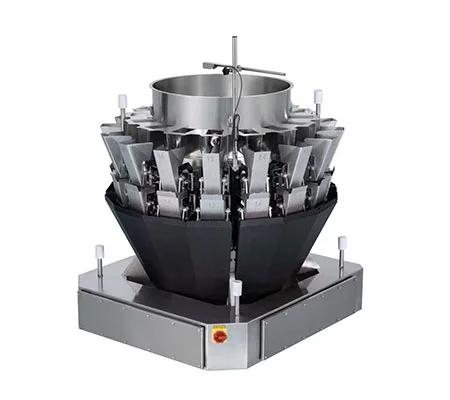

Multihead Weigher
Multihead Weigher

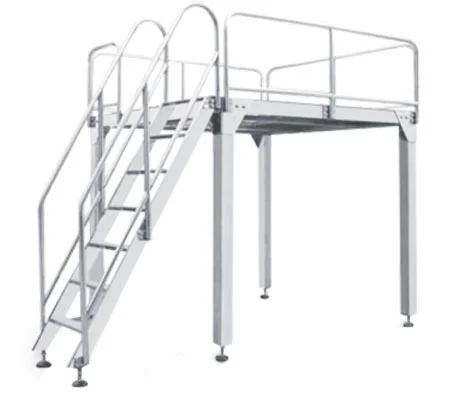

Working Platform
Working Platform

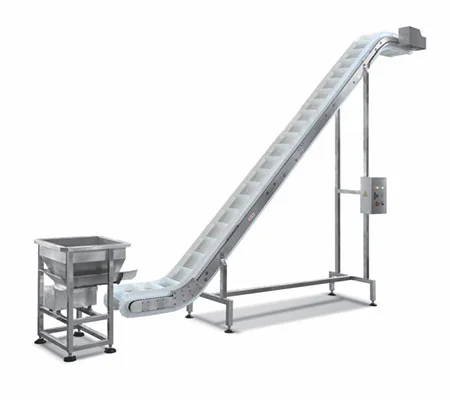

Inclined Conveyor (for products requiring cleaning after use)
Inclined Conveyor
Request a Quote

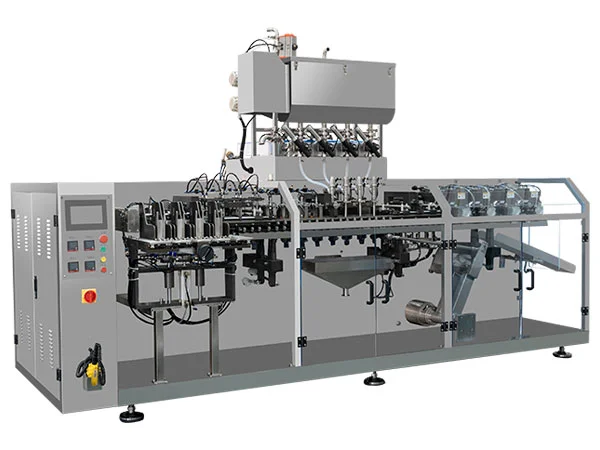

Sauce Packaging

Sauce Packaging
Sauce Packaging
Sauce Packaging
Request a Quote

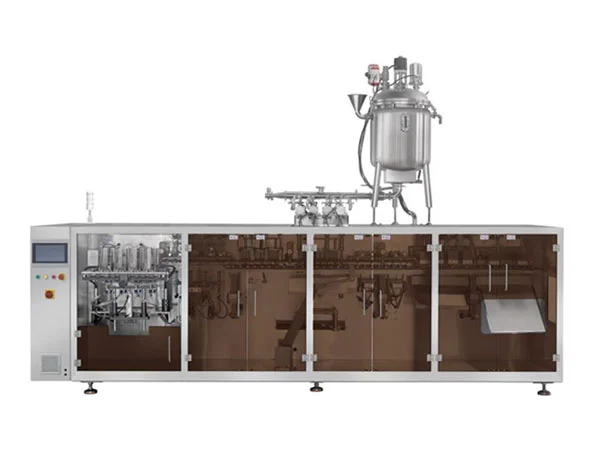

Liquid Packaging

Liquid Packaging
Liquid Packaging

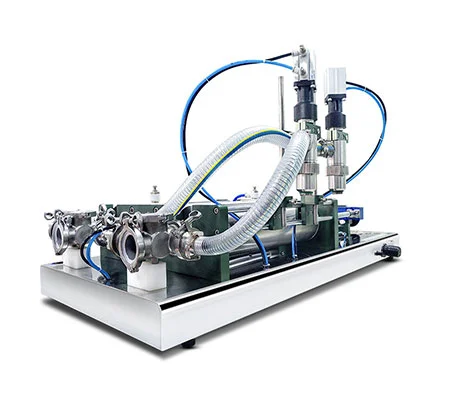

Piston Pump Feeding System
Piston Pump Feeding System

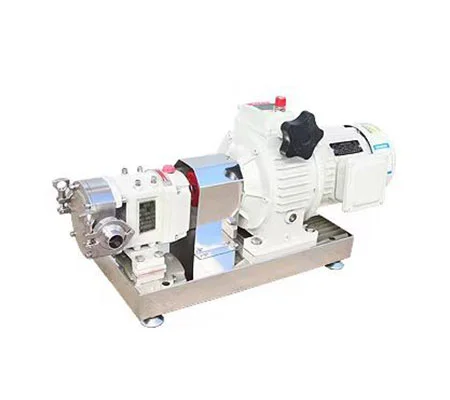

Feeding Pump
Feeding Pump
Request a Quote

Specifications

RL-SP480-2 Pouch Packaging Equipment

Material-Contacting Parts Food-grade stainless steel
Production Speed 50–60 pouches per minute (dual lane)
Pouch Size Max. pouch size (L×W): 300×220mm Min. pouch size (L×W): 300×120mm
Power Supply Three-phase, five-wire, 380V 50Hz, Max. 4.5kW
Air Consumption 0.5–0.6m³/min
Machine Dimensions (L×W×H) (excluding feeder) 3500×1400×1400mm
Machine Weight 2500kg
Request a Quote

RL-360 Pouch Packaging Equipment

Packaging Material PE, PP, CPP, OPP, PET, PA nylon, VMPET, VMCPP aluminum foil bag, aluminum foil paper bag
Production Speed 50-70 pouches per minute
Packaging Accuracy ±1.5%
Pouch Width 80-160mm
Pouch Height 100-280mm
Max. Load Capacity 1kg (1kg gripper needs to be customized)
Machine Power 7kW, 220V/380V/450V
Air Consumption 0.6m³/min
Air Pressure 0.6MPa
Machine Weight 2000kg
Overall Dimensions (L×W×H) 3500×1000×1390mm
Frame Material Housing: 304 stainless steel Main frame: carbon steel with powder coating treatment
Core Components Pneumatic components: Japan SMC Electrical components: France Schneider PLC, inverter, and touchscreen Oil-free vacuum pump: Japan ORION
Request a Quote
