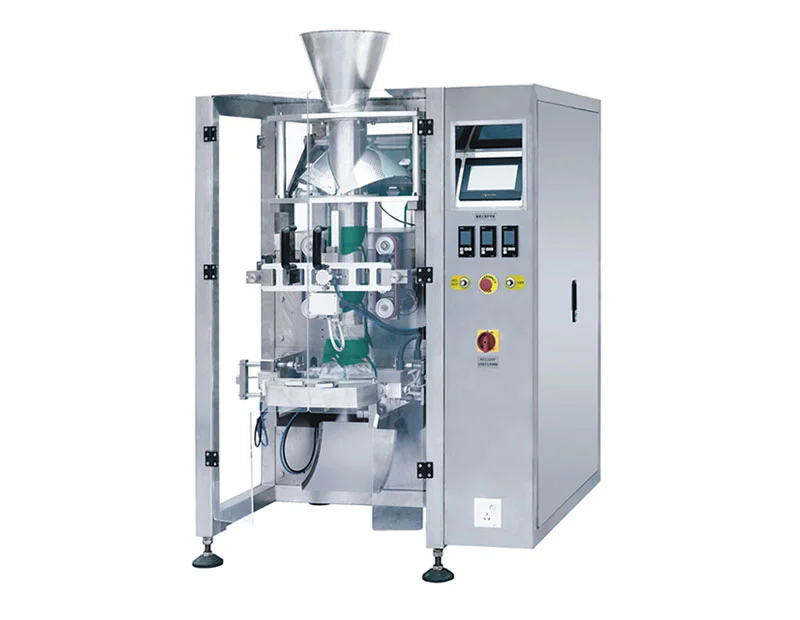

VFFS Packaging Machine and Packaging System
The VFFS packaging machine comes with a forming shoulder for accurate material filling, both vertical and horizontal heat sealing, and cutting all engineered for automatic bag froming, filling and sealing. The VFFS machine operates using a PLC control system with servo drive for precise and reliable adjustments of the pouch length and temperature control. The user-friendly touchscreen simplifies operation and is able to store multiple sets of parameters for quick product changeover. Food-grade 304 stainless steel is used for the structure, reliably meeting food, consumer goods, and pharmaceuticals hygiene requirements.

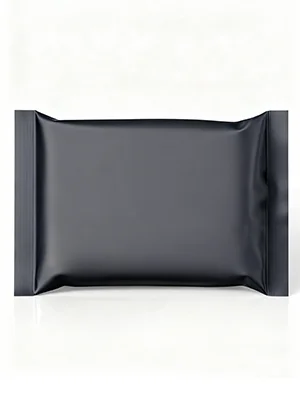

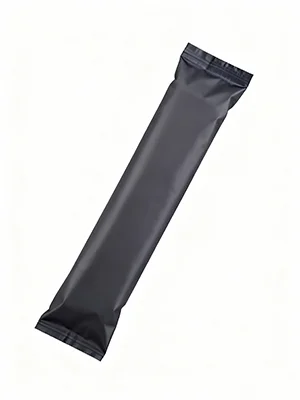

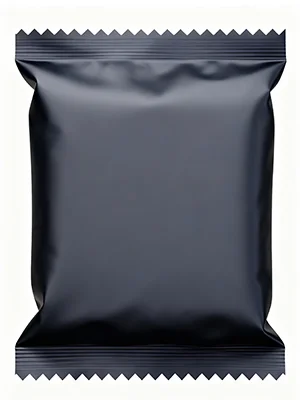

This vertical packaging machine is suiable for packaging granules, powders, liquids, and other solid products, and supports various bag styles including pillow bags, gusseted bags, and back-seal bags. Any specific requirements like nitrogen flushing to maintain product freshness can all be customized accordingly.
Customized Packaging Systems for Various Product Forms
Specifications
RL-320 Vertical Form Fill Seal Machines
| Packaging Speed | 25-85bags/min |
|---|---|
| Bag Size | Width: 60-150mm Length: 50-250mm (bag length can be 300mm with double pull) |
| Film Width | 140-320mm |
| Packaging Material | 1. Heat-sealable laminated films: OPP/PE/PVC, OPP/CPP, KOP/CPP, ALU-FOIL 2. For single-layer PE film, a dedicated PE film heat-sealing device is required |
| Optional Features | Coding Thermal transfer overprinting, ink roll coding, inkjet coding Gas & air control Gas flushing, vent hole punching, air exhaust (sponge type/spring type/pinhole type) Feeding Pouch feeding, promotional items feeding (toys/gifts) Hole punching Tear line perforation (linked pouches with perforated tear line), hang hole punching, sealing area hole punching Others Gusset forming, vibration device |
| Film Thickness | 0.04-0.08mm |
| Total Power/Voltage | 2.2kW/220V 50-60Hz |
| Air Consumption | 300L/min 0.8×105Pa |
| Overall Dimensions (L×W×H) | 1150×820×1400mm (including receiving hopper) |
| Machine Weight | 250kg |
RL-398 Vertical Form Fill Seal Machines
| Packaging Speed | 15-80bags/min |
|---|---|
| Bag Size | Width: 70-200mm Length: 50-300mm (bag length can be 400mm with double pull) |
| Film Width | 160-430mm |
| Packaging Material | 1. Heat-sealable laminated films: OPP/PE/PVC, OPP/CPP, KOP/CPP, ALU-FOIL 2. For single-layer PE film, a dedicated PE film heat-sealing device is required |
| Optional Features | Coding Thermal transfer overprinting, ink roll coding, inkjet coding Gas & air control Gas flushing, vent hole punching, air exhaust (sponge type/spring type/pinhole type) Sealing Servo-driven cross sealing Feeding Pouch feeding, promotional items feeding (toys/gifts) Hole punching Tear line perforation (linked pouches with perforated tear line), hang hole punching, sealing area hole punching Others Vibration device, color strip device |
| Film Thickness | 0.05-0.10mm |
| Total Power/Voltage | 2.5kW/220V 50-60Hz |
| Air Consumption | 400L/min 0.8×105Pa |
| Overall Dimensions (L×W×H) | 1400×950×1680mm (including receiving hopper) |
| Machine Weight | 350kg |
RL-420 Vertical Form Fill Seal Machines
| Packaging Speed | 15-80bags/min |
|---|---|
| Bag Size | Width: 80-205mm Length: 100-300mm (bag length can be 400mm with double pull) |
| Film Width | 170-430mm |
| Packaging Material | 1. Heat-sealable laminated films: OPP/PE/PVC, OPP/CPP, KOP/CPP, ALU-FOIL 2. For single-layer PE film, a dedicated PE film heat-sealing device is required |
| Optional Features | Coding Thermal transfer overprinting, ink roll coding, inkjet coding Gas & air control Gas flushing, vent hole punching, air exhaust (sponge type/spring type/pinhole type) Film & Sealing PE film air cooling, vacuum film pulling, servo-driven cross sealing Feeding Pouch feeding, promotional items feeding (toys/gifts) Hole punching Tear line perforation (linked pouches with perforated tear line), hang hole punching, sealing area hole punching Others One-way degassing valve insertion, gusset forming/upper hopper device, vibration device, lower material support device, color strip device, edge alignment device |
| Film Thickness | 0.06-0.10mm |
| Total Power/Voltage | 3.0kW/220V 50-60Hz |
| Air Consumption | 400L/min 0.8×105Pa |
| Overall Dimensions (L×W×H) | 1900×1050×1550mm |
| Machine Weight | 450kg |
RL-520 Vertical Form Fill Seal Machines
| Packaging Speed | 10-70bags/min |
|---|---|
| Bag Size | Width: 80-250mm Length: 100-320mm (bag length can be 400mm with double pull) |
| Film Width | 180-520mm |
| Packaging Material | 1. Heat-sealable laminated films: OPP/PE/PVC, OPP/CPP, KOP/CPP, ALU-FOIL 2. For single-layer PE film, a dedicated PE film heat-sealing device is required |
| Optional Features | Coding Thermal transfer overprinting, ink roll coding, inkjet coding Gas & air control Gas flushing, vent hole punching, air exhaust (sponge type/spring type/pinhole type) Film & Sealing PE film air cooling, vacuum film pulling, servo-driven cross sealing Feeding Pouch feeding, promotional items feeding (toys/gifts) Hole punching Tear line perforation (linked pouches with perforated tear line), hang hole punching, sealing area hole punching Others One-way degassing valve insertion, gusset forming/upper hopper device, vibration device, lower material support device, color strip device, edge alignment device |
| Film Thickness | 0.06-0.10mm |
| Total Power/Voltage | 3.0kW/220V 50-60Hz |
| Air Consumption | 400L/min 0.8×105Pa |
| Overall Dimensions (L×W×H) | 1900×1180×1800mm (including receiving hopper) |
| Machine Weight | 500kg |
RL-720 Vertical Form Fill Seal Equipment
| Packaging Speed | 5-50bags/min |
|---|---|
| Bag Size | Width: 110-350mm Length: 100-420mm (bag length can be 600mm with double pull) |
| Film Width | 240-720mm |
| Packaging Material | 1. Heat-sealable laminated films: OPP/PE/PVC, OPP/CPP, KOP/CPP, ALU-FOIL 2. For single-layer PE film, a dedicated PE film heat-sealing device is required |
| Optional Features | Coding Thermal transfer overprinting, ink roll coding, inkjet coding Gas & air control Gas flushing, vent hole punching, air exhaust (sponge type/spring type/pinhole type) Film & Sealing PE film air cooling, vacuum film pulling, servo-driven cross sealing Feeding Pouch feeding, promotional items feeding (toys/gifts) Hole punching Tear line perforation (linked pouches with perforated tear line), hang hole punching, sealing area hole punching Others One-way degassing valve insertion, gusset forming/upper hopper device, vibration device, lower material support device, color strip device, edge alignment device |
| Film Thickness | 0.06-0.12mm |
| Total Power/Voltage | 3.5kW/220V 50-60Hz |
| Air Consumption | 800L/min 0.8×105Pa |
| Overall Dimensions (L×W×H) | 1800×1360×1900mm (including receiving hopper) |
| Machine Weight | 800kg |
RL-720T Vertical Form Fill Seal Machines
| Packaging Speed | 5-30bags/min |
|---|---|
| Bag Size | Bag width (front): 100-240mm Bag width (side): 65-120mm |
| Side sealing width: 5-10mm Bag length: 100-420mm |
|
| Film Width | 280-720mm |
| Packaging Material | 1. Heat-sealable laminated films: OPP/PE/PVC, OPP/CPP, KOP/CPP, ALU-FOIL 2. For single-layer PE film, a dedicated PE film heat-sealing device is required |
| Optional Features | Coding Thermal transfer overprinting, ink roll coding, inkjet coding Gas & air control Gas flushing, vent hole punching, air exhaust (sponge type/spring type/pinhole type) Film & Sealing Vacuum film pulling, servo-driven cross sealing Feeding Pouch feeding, promotional items feeding (toys/gifts) Hole punching Tear line perforation (linked pouches with perforated tear line), hang hole punching, sealing area hole punching Others One-way degassing valve insertion, vibration device, lower material support device |
| Film Thickness | 0.06-0.10mm |
| Total Power/Voltage | 4.0kW/220V 50-60Hz |
| Air Consumption | 600L/min 0.8×105Pa |
| Overall Dimensions (L×W×H) | 1900×1600×2300mm (including receiving hopper) |
| Machine Weight | 900kg |
RL-820 Vertical Form Fill Seal Machines
| Packaging Speed | 5-30bags/min |
|---|---|
| Bag Size | Width: 150-400mm Length: 100-540mm (bag length can be 700mm with double pull) |
| Film Width | 300-820mm |
| Packaging Material | 1. Heat-sealable laminated films: OPP/PE/PVC, OPP/CPP, KOP/CPP, ALU-FOIL 2. For single-layer PE film, a dedicated PE film heat-sealing device is required |
| Optional Features | Coding Thermal transfer overprinting, ink roll coding, inkjet coding Gas & air control Gas flushing, vent hole punching, air exhaust (sponge type/spring type/pinhole type) Film & Sealing PE film air cooling, vacuum film pulling, servo-driven cross sealing Feeding Pouch feeding, promotional items feeding (toys/gifts) Hole punching Tear line perforation (linked pouches with perforated tear line), hang hole punching, sealing area hole punching Others One-way degassing valve insertion, gusset forming/upper hopper device, vibration device, lower material support device, color strip device, edge alignment device |
| Film Thickness | 0.06-0.13mm |
| Total Power/Voltage | 4.0kW/220V 50-60Hz |
| Air Consumption | 800L/min 0.8×105Pa |
| Overall Dimensions (L×W×H) | 1800×1300×2210mm (including receiving hopper) |
| Machine Weight | 800kg |
