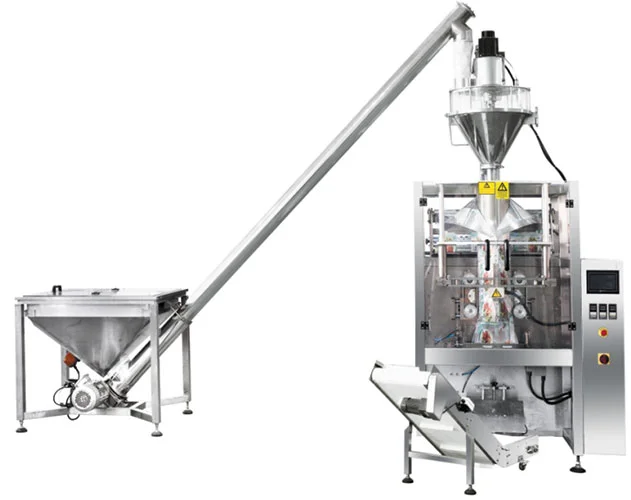

PowderVertical Form, Fill and Seal (VFFS) Machine

powder premade pouch packaging application

This VFFS packaging machine is a vertical automatic packaging machine specially designed for powder products. It is able to form pouches, with a packaging speed of up to 60 bags per minute, effectively improving production efficiency.All components that come into contact with food are made of 304 stainless steel. The vertical packaging machine features a forming shoulder, enabling the roll film to rapidly and accurately form into preset pouch shapes, compatible with common bag types such as pillow bags, with stable forming and excellent sealing. Dust production is effectively decreased when the packaging machine is used alongside a screw feeder for automated material delivery.
This VFFS packaging machine is essentially perfect for a variety of powders, including flour, seasonings, and milk powder. Less product waste can be achieved when the specialized powder filling uses a screw for accurate dosing. The VFFS powder machine consists of a user-friendly touchscreen that can hold several parameter sets for a variety of tasks such as product changeover, independent and stable temperature management, changeable bag length, and PLC servo control. Moreover, supporting configurable features like nitrogen flushing, linked bag packing, and perforation are customizable to meet a satisfactory hygienic requirement.

Main Components

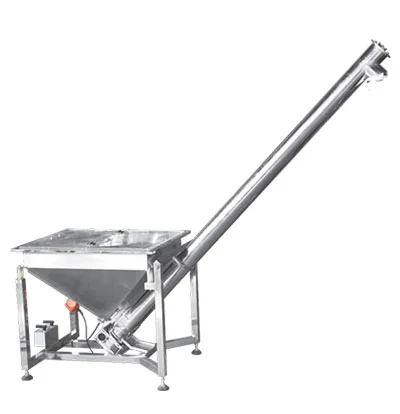

Screw Elevator
Screw Elevator

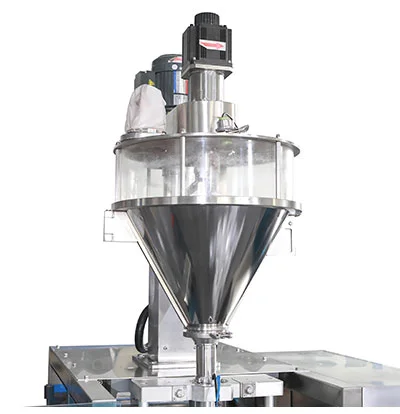

Automatic Auger Filler
Automatic Auger Filler

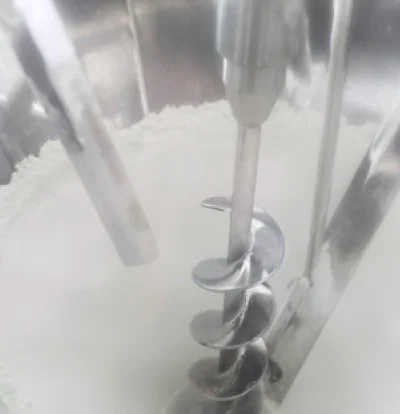

Auger
Auger

Workflow

Bag Feeding

Bag Feeding

Coding

Coding

Bag Opening

Bag Opening

First Filling

First Filling

Second Filling (Reserved)

Second Filling (Reserved)

Specifications

Powder Vertical Form, Fill and Seal (VFFS) Machine (for packaging up to 50g)

Model 320F
Bag Size Length: 50-200mm Width: 30-150mm
Packaging Speed 5-60bags/min
Max. Film Width 320mm
Film Thickness 0.04-0.09mm
Film Pulling Method Dual Roller Film Pulling
Air Consumption 0.8Mpa 0.5m³/min
Power Supply 2.2kW 220V 50Hz
Weighing Range Max. 500ml
Overall Dimensions (L×W×H) 1340×840×1600mm
Machine Weight 180kg

Powder VFFS Machine (for packaging up to 500g)

Model RL-320
Packaging Speed 25-85bags/min
Bag Size Width: 60-150mm Length: 50-250mm (bag length can be 300mm with double pull)
Film Width 140-320mm
Packaging Material 1. Heat-sealable laminated films: OPP/PE/PVC, OPP/CPP, KOP/CPP, ALU-FOIL 2. For single-layer PE film, a dedicated PE film heat-sealing device is required
Optional Features Coding
Thermal transfer overprinting, ink roll coding, inkjet coding
Gas & air control
Gas flushing, vent hole punching, air exhaust (sponge type/spring type/pinhole type)
Feeding
Pouch feeding, promotional items feeding (toys/gifts)
Hole punching Tear line perforation (linked pouches with perforated tear line), hang hole punching, sealing area hole punching
Others
Gusset forming, vibration device
Film Thickness 0.04-0.08mm
Total Power/Voltage 2.2kW/220V 50-60Hz
Air Consumption 300L/min 0.8×105Pa
Overall Dimensions (L×W×H) 1150×820×1400mm (including receiving hopper)
Machine Weight 250kg

VFFS Machine (for packaging up to 2.5kg)

Model RL-520
Packaging Speed 10-70bags/min
Bag Size Width: 80-250mm Length: 100-320mm (bag length can be 400mm with double pull)
Film Width 180-520mm
Packaging Material 1. Heat-sealable laminated films: OPP/PE/PVC, OPP/CPP, KOP/CPP, ALU-FOIL 2. For single-layer PE film, a dedicated PE film heat-sealing device is required
Optional Features Coding
Thermal transfer overprinting, ink roll coding, inkjet coding
Gas & air control
Gas flushing, vent hole punching, air exhaust (sponge type/spring type/pinhole type)
Film & Sealing
PE film air cooling, vacuum film pulling, servo-driven cross sealing
Feeding
Pouch feeding, promotional items feeding (toys/gifts)
Hole punching
Tear line perforation (linked pouches with perforated tear line), hang hole punching, sealing area hole punching
Others
One-way degassing valve insertion, gusset forming/upper hopper device, vibration device, lower material support device, color strip device, edge alignment device
Film Thickness 0.06-0.10mm
Total Power/Voltage 3.0kW/220V 50-60Hz
Air Consumption 400L/min 0.8×105Pa
Overall Dimensions (L×W×H) 1900×1180×1800mm (including receiving hopper)
Machine Weight 500kg
