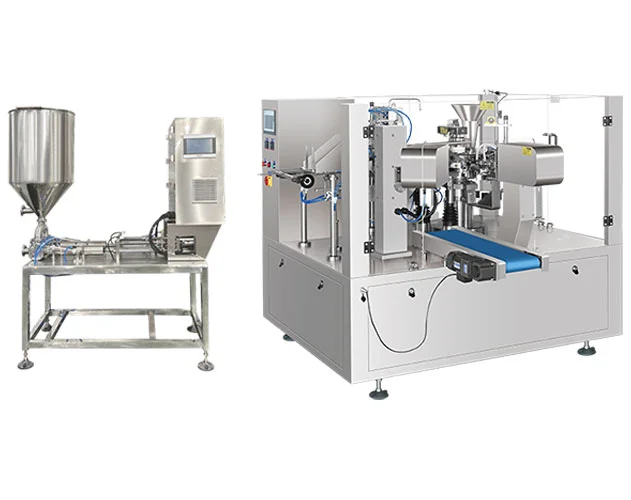

LiquidPre-made Pouch Packing Machine

powder premade pouch packaging application

The liquid filling machine is specifically designed for highly fluid liquid products such as salad dressing, ketchup, fruit juice, oils, and other sauces. Various types of pumps are suitable for different flow characteristics of the material, guaranteeing great adaptability, stable operation, and precise filling. Numerous customized filling nozzles are available to match the specific product type. The liquid filling machine is capable of packaging 35–70 pouches per minute, drastically improving production efficiency. The packaging system accommodates multiple pouch sizes and types, including flat pouches, stand-up pouches, zipper pouches, and spout pouches. The filling machine includes motorized or touchscreen-controlled intelligent gripper adjustment, enabling quick and simple adjustment of the eight grippers. All components that come into contact with food are made of 304 stainless steel, with optional customization to 316 stainless steel. The 8-station design enables a fully automated operation, including pouch feeding, bag opening, filling, and sealing. Additional optional modules can be added if required such as zipper pouch opening devices, air blowing, nitrogen flushing, air exhaust, pouch mouth dust removal, and hole punching systems.

Workflow

Bag Feeding

Bag Feeding

Coding

Coding

Bag Opening

Bag Opening

First Filling

First Filling

Second Filling (Reserved)

Second Filling (Reserved)

Pouch Mouth Cleaning

Pouch Mouth Cleaning

Heat Sealing

Heat Sealing

Cooling & Outfeeding

Cooling & Outfeeding

Configurations

Automatic Lubrication System
Automatic Lubrication System
Integrated Gripper Adjustment System
Integrated Gripper Adjustment System
Glass Safety Door
Glass Safety Door
Single or Double Filling Nozzles (Optional)
Single or Double Filling Nozzles (Optional)
Air Exhaust
Air Exhaust
Siemens Touchscreen (Multi-language)
Siemens Touchscreen (Multi-language)
Ribbon Coding Machine
Ribbon Coding Machine
Empty Pouch & Pouch Presence Detection
Empty Pouch & Pouch Presence Detection
Outfeed Conveyor
Outfeed Conveyor
Cleaning Sink (at the worktable)
Cleaning Sink (at the worktable)

Sample display

powder packaging sample placeholder one
powder packaging sample placeholder two
powder packaging sample placeholder three
powder packaging sample placeholder four
