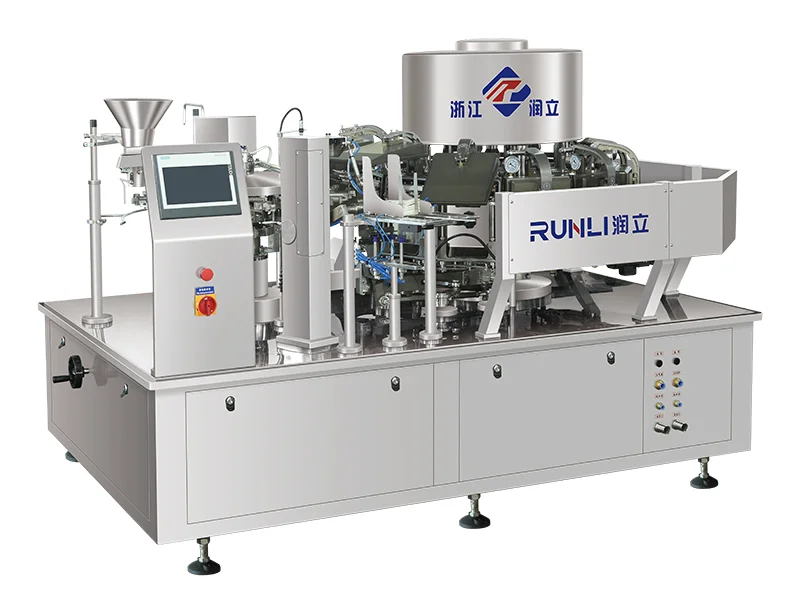

Rotary Vacuum Packaging Machine
Rotary vacuum packaging machines are designed for pre-made pouches requiring vacuum sealing. They effectively isolate air and moisture which can vastly inhibit microbial growth therefore, significantly extending shelf life while preserving flavor and freshness.
This type of vacuum packaging machines is perfect for different materials such as paste , granules, and chunks, and commonly used in the food, pharmaceutical, and electronics industries to prevent oxidation, spoilage, and moisture-related corrosion of electronic components.
Pouch Types
Zipper Stand-up Pouch
Zipper Stand-up Pouch with Hang Hole
Flat Pouch with Zipper
Flat Pouch with Zipper & Hang Hole
Side Spout Pouch
Diffferent bag feeding methods are applied for different pouch types
Customized Packaging Systems for Various Product Forms
Specifications
RL-GD10-ZK16-1018 Rotary Vacuum Packaging Machine
| Working Stations | 10 Stations 10 Vacuum Chambers |
|---|---|
| Machine Material | 304 Stainless Steel |
| Pouch Types | Flat Pouches, Quad Seal Pouches, Aluminum Foil Bags, Retort Pouches, Composite Paper Bags |
| Pouch Size | Width: 55-100mm Length: 80-180mm |
| Design Speed | 120 pouches/min |
| Packaging Speed | 80-120 pouches/min (depending on product properties) |
| Sealing Method | Instant heat sealing with water cooling to ensure smooth and firm sealing |
| Applicable Materials | Agricultural products, hot pot seasoning, soybean products, meat products, egg products, pickled vegetables, snack foods, and other vacuum-packable materials |
| Workflow of Bag Feeding & Filling System | Bag Feeding → Coding (Optional) → Bag Opening →1st Filling → 2nd Filling (Reserved) → Pouch Mouth Cleaning → Empty Station →Pouch Transfer → Empty Station |
| Workflow of Vacuum System | Pouch Loading→Lid Closing →Vacuum Evacuation → Continuous Vacuuming → Sealing & Cooling →Pressure Recovery→ Outfeeding → Reset |
| Total Power | Main Machine: 4.5kW Vacuum Pump: 5-7.5kW |
| Machine Weight | 3500kg |
| Overall Dimensions | 2830×1685×1600mm |
| Compressed Air Consumption | ≥0.8m³/min |
RL-GD10-ZK16-1027 Vacuum Packaging Machine
| Working Stations | 10 Stations 10 Vacuum Chambers |
|---|---|
| Machine Material | 304 Stainless Steel |
| Pouch Types | Flat Pouches, Quad Seal Pouches, Aluminum Foil Bags, Retort Pouches, Composite Paper Bags |
| Pouch Size | Width: 55-100mm Length: 100-270mm |
| Design Speed | 100 pouches/min |
| Packaging Speed | 80-120 pouches/min (depending on product properties) |
| Sealing Method | Instant heat sealing with water cooling to ensure smooth and firm sealing |
| Applicable Materials | Agricultural products, hot pot seasoning, soybean products, meat products, egg products, pickled vegetables, snack foods, and other vacuum-packable materials |
| Workflow of Bag Feeding & Filling System | Bag Feeding → Coding (Optional) → Bag Opening →1st Filling → 2nd Filling (Reserved) → Pouch Mouth Cleaning → Empty Station →Pouch Transfer → Empty Station |
| Workflow of Vacuum System | Pouch Loading→Lid Closing →Vacuum Evacuation → Continuous Vacuuming → Sealing & Cooling →Pressure Recovery → Outfeeding → Reset |
| Total Power | Main Machine: 4.5kW Vacuum Pump: 5-7.6kW |
| Machine Weight | 3500kg |
| Overall Dimensions | 2830×1685×1600mm |
| Compressed Air Consumption | ≥0.8m³/min |
RL-GD10-ZK14-1320 Rotary Vacuum Packaging Equipment
| Working Stations | 10 Stations 14 Vacuum Chambers |
|---|---|
| Machine Material | 304 Stainless Steel |
| Pouch Types | Flat Pouches, Quad Seal Pouches, Aluminum Foil Bags, Retort Pouches, Composite Paper Bags |
| Pouch Size | Width: 55-130mm Length: 80-200mm |
| Design Speed | 100 pouches/min |
| Packaging Speed | 70-100 pouches/min (depending on product properties) |
| Sealing Method | Instant heat sealing with water cooling to ensure smooth and firm sealing |
| Applicable Materials | Agricultural products, hot pot seasoning, soybean products, meat products, egg products, pickled vegetables, snack foods, and other vacuum-packable materials |
| Workflow of Bag Feeding & Filling System | Bag Feeding → Coding (Optional) → Bag Opening →1st Filling →2nd Filling (Reserved) → Pouch Mouth Cleaning → Empty Station →Pouch Transfer → Empty Station |
| Workflow of Vacuum System | Pouch Loading→Lid Closing →Vacuum Evacuation → Continuous Vacuuming → Sealing & Cooling →Pressure Recovery → Outfeeding → Reset |
| Total Power | Main Machine: 4.5kW Vacuum Pump: 5-7.7kW |
| Machine Weight | 3500kg |
| Overall Dimensions | 2670×1500×1760mm |
| Compressed Air Consumption | ≥0.8m³/min |
RL-GD10-ZK14-1327 Vacuum Packaging Machine
| Working Stations | 10 Stations 14 Vacuum Chambers |
|---|---|
| Machine Material | 304 Stainless Steel |
| Pouch Types | Flat Pouches, Quad Seal Pouches, Aluminum Foil Bags, Retort Pouches, Composite Paper Bags |
| Pouch Size | Width: 55-130mm Length: 80-270mm |
| Design Speed | 90 pouches/min |
| Packaging Speed | 70-90 pouches/min (depending on product properties) |
| Sealing Method | Instant heat sealing with water cooling to ensure smooth and firm sealing |
| Applicable Materials | Agricultural products, hot pot seasoning, soybean products, meat products, egg products, pickled vegetables, snack foods, and other vacuum-packable materials |
| Workflow of Bag Feeding & Filling System | Bag Feeding → Coding (Optional) → Bag Opening →1st Filling → 2nd Filling (Reserved) → Pouch Mouth Cleaning → Empty Station →Pouch Transfer → Empty Station |
| Workflow of Vacuum System | Pouch Loading→Lid Closing →Vacuum Evacuation → Continuous Vacuuming → Sealing & Cooling →Pressure Recovery → Outfeeding → Reset |
| Total Power | Main Machine: 4.5kW Vacuum Pump: 5-7.8kW |
| Machine Weight | 3500kg |
| Overall Dimensions | 2670×1500×1760mm |
| Compressed Air Consumption | ≥0.8m³/min |
RL-GD10-ZK12-1627 Rotary Vacuum Packaging Machine
| Working Stations | 10 Stations 12 Vacuum Chambers |
|---|---|
| Machine Material | 304 Stainless Steel |
| Pouch Types | Flat Pouches, Quad Seal Pouches, Aluminum Foil Bags, Retort Pouches, Composite Paper Bags |
| Pouch Size | Width: 80-160mm Length: 80-270mm |
| Design Speed | 80 pouches/min |
| Packaging Speed | 30-80 pouches/min (depending on product properties) |
| Sealing Method | Instant heat sealing with water cooling to ensure smooth and firm sealing |
| Applicable Materials | Agricultural products, hot pot seasoning, soybean products, meat products, egg products, pickled vegetables, snack foods, and other vacuum-packable materials |
| Workflow of Bag Feeding & Filling System | Bag Feeding → Coding (Optional) → Bag Opening →1st Filling → 2nd Filling (Reserved) → Pouch Mouth Cleaning → Empty Station →Pouch Transfer → Empty Station |
| Workflow of Vacuum System | Pouch Loading→Lid Closing →Vacuum Evacuation → Continuous Vacuuming → Sealing & Cooling →Pressure Recovery → Outfeeding → Reset |
| Total Power | Main Machine: 4.5kW Vacuum Pump: 5-7.9kW |
| Machine Weight | 2800kg |
| Overall Dimensions | 2450×1720×1680mm |
| Compressed Air Consumption | ≥0.8m³/min |
RL-GD8-ZK10-2030 Rotary Packaging Equipment
| Working Stations | 10 Stations 10 Vacuum Chambers |
|---|---|
| Machine Material | 304 Stainless Steel |
| Pouch Types | Flat Pouches, Quad Seal Pouches, Aluminum Foil Bags, Retort Pouches, Composite Paper Bags |
| Pouch Size | Width: 120-200mm Length: 150-300mm |
| Design Speed | 60 pouches/min |
| Packaging Speed | 10-60 pouches/min (depending on product properties) |
| Sealing Method | Instant heat sealing with water cooling to ensure smooth and firm sealing |
| Applicable Materials | Agricultural products, hot pot seasoning, soybean products, meat products, egg products, pickled vegetables, snack foods, and other vacuum-packable materials |
| Workflow of Bag Feeding & Filling System | Bag Feeding → Coding (Optional) → Bag Opening →1st Filling → 2nd Filling (Reserved) → Pouch Mouth Cleaning → Empty Station →Pouch Transfer → Empty Station |
| Workflow of Vacuum System | Pouch Loading→Lid Closing →Vacuum Evacuation → Continuous Vacuuming → Sealing & Cooling →Pressure Recovery → Outfeeding → Reset |
| Total Power | Main Machine: 4.5kW Vacuum Pump: 5-7.10kW |
| Machine Weight | 3000kg |
| Overall Dimensions | 2750×1720×1750mm |
| Compressed Air Consumption | ≥0.8m³/min |
Features
- Automatic Pouch Width Adjustment: A mechanical drive structure is used to reduce pouch changeover time and for rapid adaptation to varying pouch widths
- Empty Pouch Cycling System: Prevents ineffective sealing and reduces pouch material waste
- Automatic Spraying Lubrication System: The packaging machine is fully waterproof and is designed for easy cleaning
- Multi-Station Options (up to 10 stations): Can choose an appropriate number of stations according to the production requirements
- Higher and More Stable Vacuum Degree (12-chamber structure): Perfect product consistency and stable vacuum results are achieved with the multi-chamber coordinated vacuuming
- Aviation-Grade Aluminum Integrated Vacuum Chamber: The chamber is highly durable, with excellent sealing properties, providing stable vacuum performance
- Flexible Feeding System: Enables rapid changeover between different materials and processes, perfect for a wide variety of products, small-batch or even production that require flexibility
