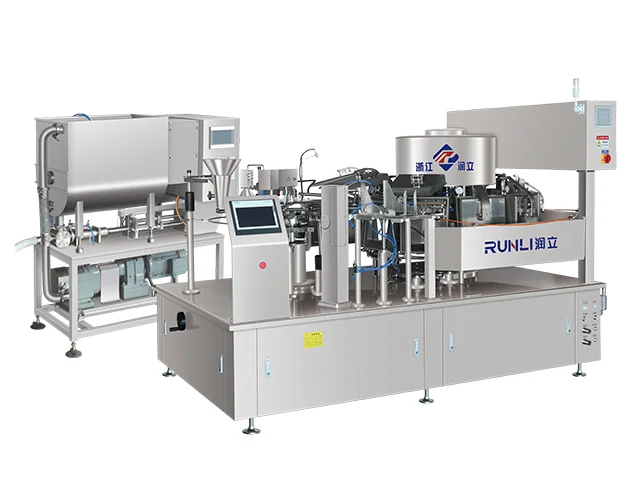

PasteRotary Vacuum Packaging Machine

Applications

The paste packaging machine is especially designed to be able to handle different types of sauce viscosities. This premade pouch packaging machine comes with customizable filling pumps and heads, which allows for quick and precise filling. Being able to operate at speeds of 35-70 pouches per minute, the production line will be effectively strengthened.

Workflow

Bag Feeding

Bag Feeding

Coding

Coding

Bag Opening

Bag Opening

First Filling

First Filling

Second Filling (Reserved)

Second Filling (Reserved)

Pouch Mouth Cleaning

Pouch Mouth Cleaning

Pouch Transfer / Pouch Loading

Pouch Transfer / Pouch Loading

Lid Closing / Vacuum Evacuation

Lid Closing / Vacuum Evacuation

Sealing & Cooling / Pressure Recovery

Sealing & Cooling / Pressure Recovery

Outfeeding

Outfeeding

Configurations

Automatic Lubrication System
Automatic Lubrication System
Integrated Gripper Adjustment System
Integrated Gripper Adjustment System
Safety Guard
Safety Guard
Filler Agitation and Liquid Level Control
Filler Agitation and Liquid Level Control
Filler Display Screen
Filler Display Screen: Allows weight adjustment directly on the screen according to the material’s density
Filler Inlet and Cleaning Port
Filler Inlet and Cleaning Port
Siemens Touchscreen (Multi-language)
Siemens Touchscreen (Multi-language)
Ribbon Coding Machine
Ribbon Coding Machine
Empty Pouch & Pouch Presence Detection
Empty Pouch & Pouch Presence Detection
Outfeed Conveyor
Outfeed Conveyor
Cleaning Sink (at the worktable)
Cleaning Sink (at the worktable)
