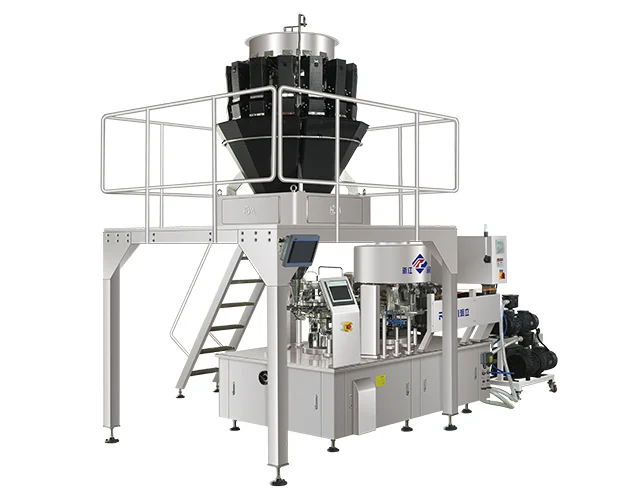

GranuleRotary Vacuum Packaging Machine

Applications

This rotary premade pouch packaging machine is designed especially for vacuum packaging granular products such as nuts, dried fruits, beef balls, meat slices/cubes, and quail eggs.
The vacuum packaging machine integrates automatic pouch feeding, opening, filling, vacuuming, and sealing into a single process. Having 10 stations operating automatically, it guarantees stable vacuum sealing while boosting packaging efficiency. By utilizing high-efficiency vacuum technology, the packaging machine effectively isolates oxygen and moisture, prolonging the shelf life of products thus, retaining their original flavor and quality.
The pouch packaging machine is controlled via a PLC touchscreen, featuring an aviation-grade aluminum vacuum chamber and rapid water-cooling heat sealing for consistent, firm seals. Food-contact components are made of 304 stainless steel (optional 316), and the system allows quick changeover between various pouch types and sizes. Additional features, such as zipper bags and pouch mouth cleaning, make the vacuum packaging machine perfect for extensive, standardized packaging of granular products.

Main Components

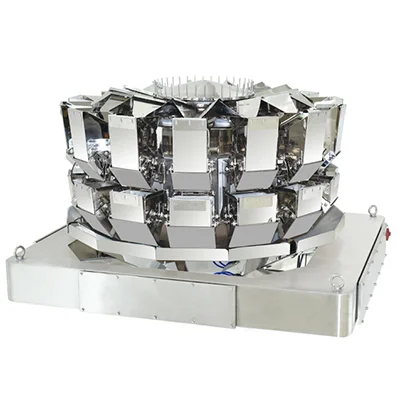

Multihead Weigher
Multihead Weigher

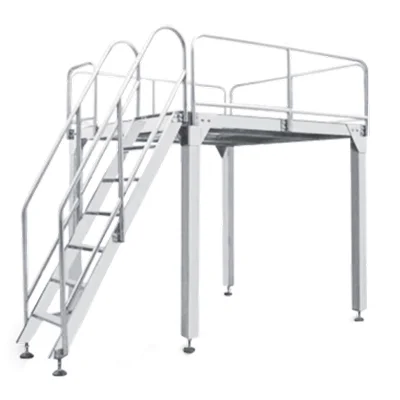

Working Platform
Working Platform

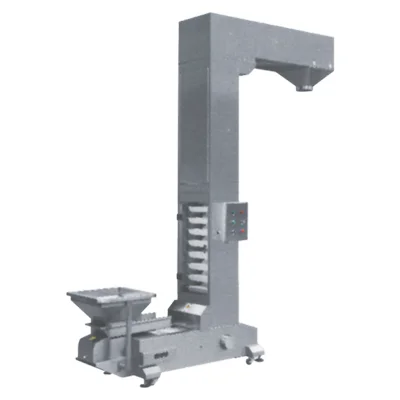

Bucket Elevator
Bucket Elevator

Workflow

Bag Feeding

Bag Feeding

Coding

Coding

Bag Opening

Bag Opening

First Filling

First Filling

Second Filling (Reserved)

Second Filling (Reserved)

Pouch Mouth Cleaning

Pouch Mouth Cleaning

Pouch Transfer / Pouch Loading

Pouch Transfer / Pouch Loading

Lid Closing / Vacuum Evacuation

Lid Closing / Vacuum Evacuation

Sealing & Cooling / Pressure Recovery

Sealing & Cooling / Pressure Recovery

Outfeeding

Outfeeding

Configurations

Automatic Lubrication System
Automatic Lubrication System
Integrated Gripper Adjustment System
Integrated Gripper Adjustment System
Safety Guard
Safety Guard
Siemens Touchscreen (Multi-language)
Siemens Touchscreen (Multi-language)
Ribbon Coding Machine
Ribbon Coding Machine
Empty Pouch & Pouch Presence Detection
Empty Pouch & Pouch Presence Detection
Outfeed Conveyor
Outfeed Conveyor
Cleaning Sink (at the worktable)
Cleaning Sink (at the worktable)

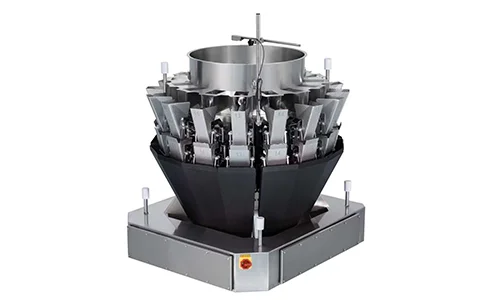

Multihead Weigher with Screw Feeding
Multihead Weigher with Screw Feeding

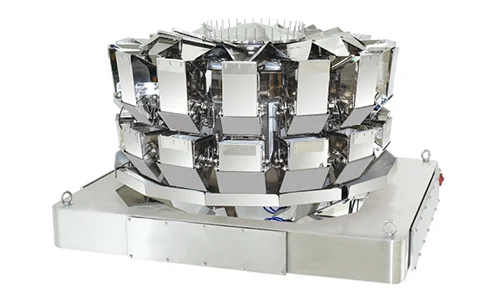

Multihead Weigher with Vibratory Feeding
Multihead Weigher with Vibratory Feeding
